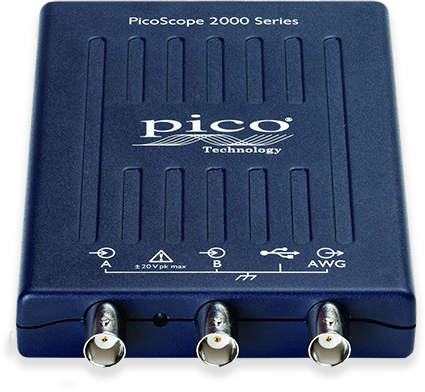

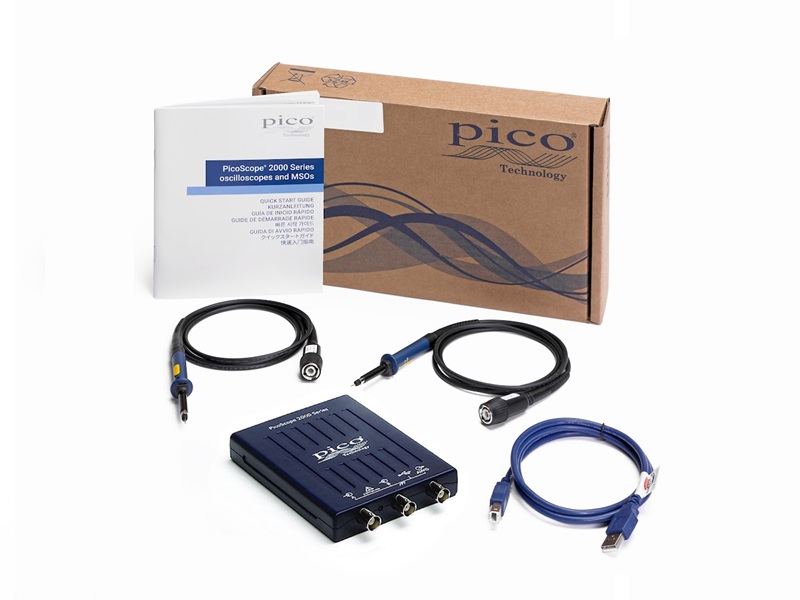

PicoScope 2204A 2 Channel Oscilloscope 10 MHz USB Digital with probes, software

The PicoScope 2000A models deliver unbeatable value for money and are ideal for education, hobby and field service use. In the lab the low cost allows one scope per person rather than having to share.

• Use your PicoScope 2000 Series as an advanced oscilloscope, spectrum analyzer, function generator, arbitrary waveform generator and protocol decoder out of the box
• 2 channel and 4 channel models
• 5 instruments in one

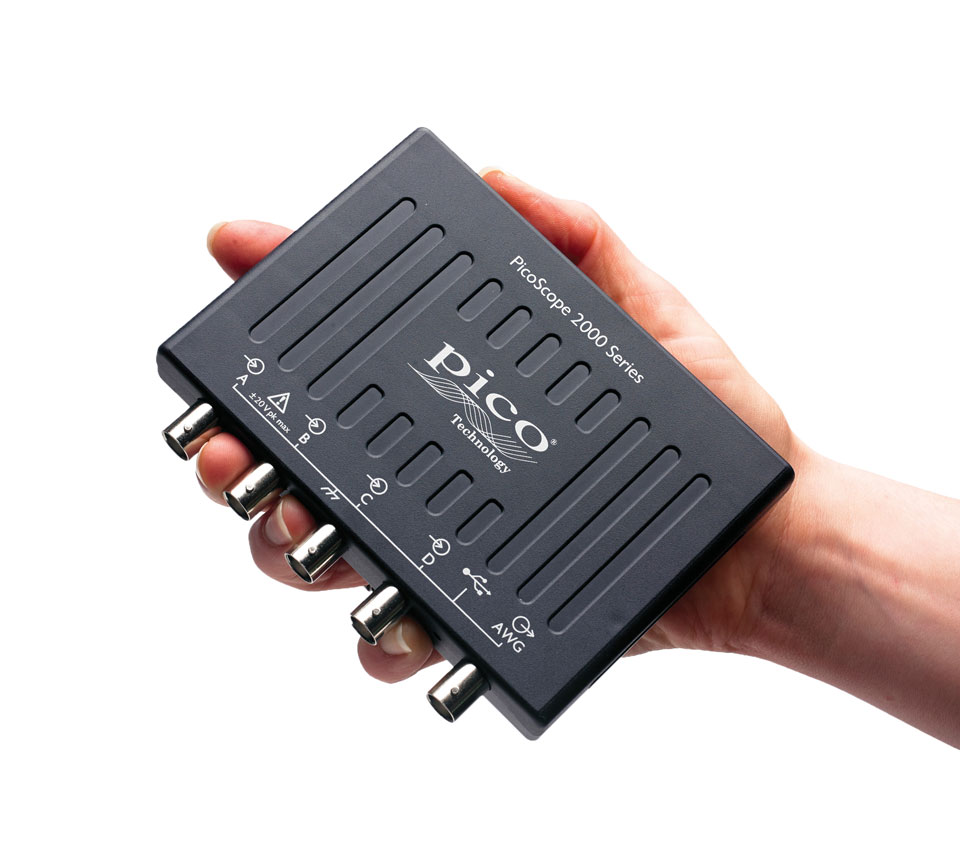

• Ultra-compact design
• Up to 100 MHz bandwidth, Up to 128 MS buffer memory, Decode 18 serial protocols as standard, USB connected and powered, Windows, Linux and Mac software

Your Complete Test & Measurement Laboratory

You can use your PicoScope 2000 Series as an advanced oscilloscope, spectrum analyser, function generator, arbitrary waveform generator and protocol decoder out of the box. An electronics lab in one compact, low-cost, USB-powered unit. The PicoScope 2000A models deliver unbeatable value for money and are ideal for education, hobby and field service use. In the lab the low cost allows one scope per person rather than having to share.

Automated Measurements

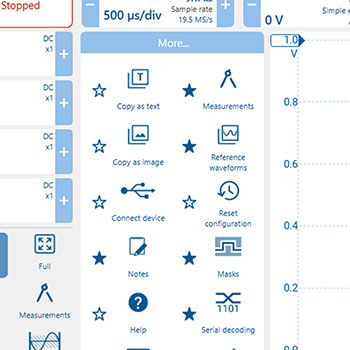

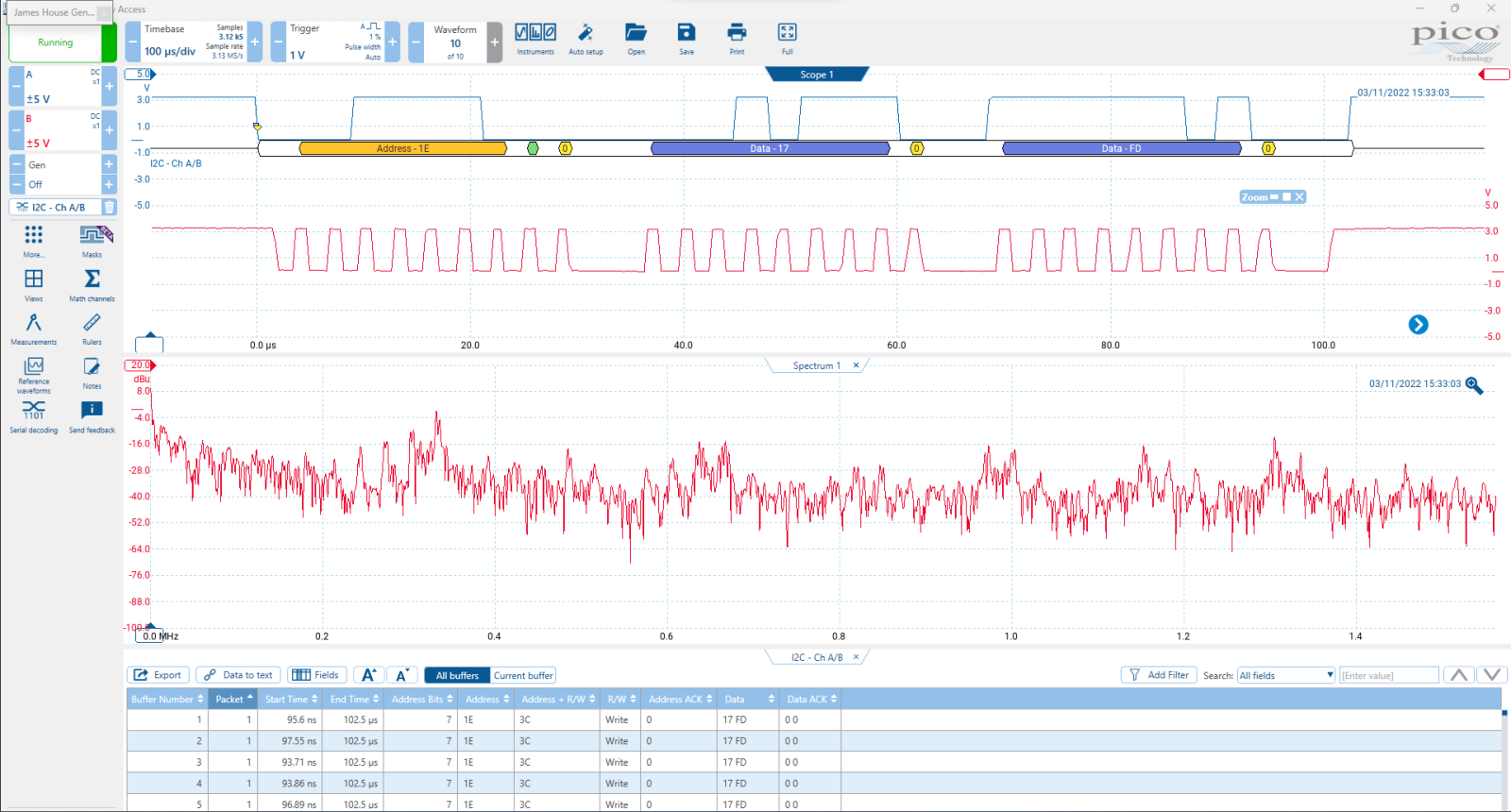

Making measurements in PicoScope is easy. A large number of measurements are possible thanks to the automated measurement system. Using the Measurements menu you can select what measurements you want PicoScope to make, and PicoScope will then automatically display a table of their values.

Small on the Outside, Big Features Inside…

Math Channels and Filters

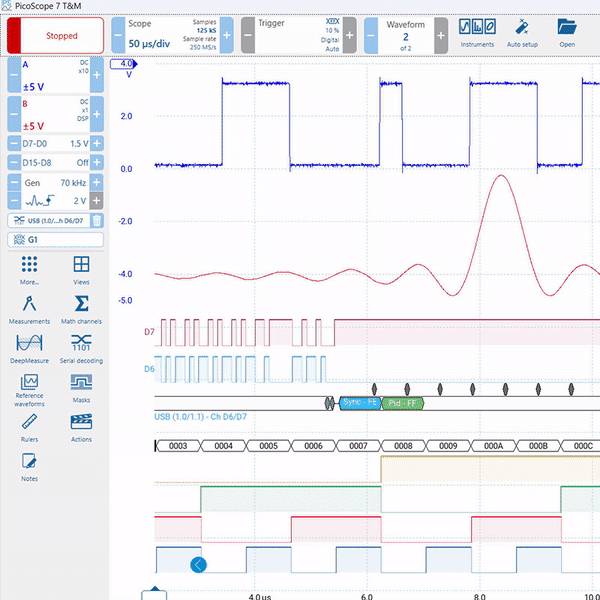

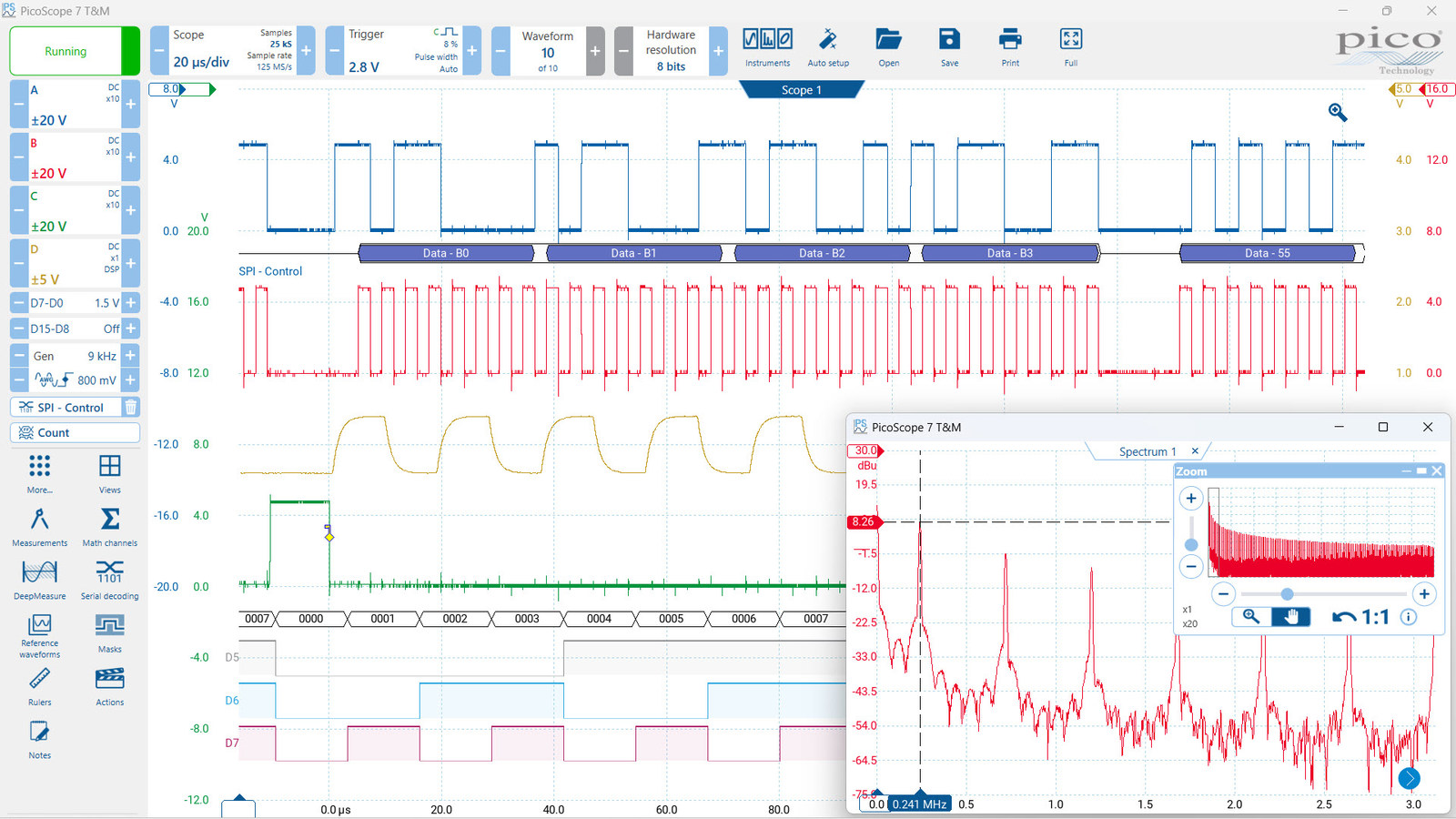

On many oscilloscopes waveform math means simple calculations, with a PicoScope it means much, much more. With PicoScope 6 you can select simple functions such as addition and inversion, or open the editor to create complex functions. Waveform math also allows you to plot live signals alongside averaged or filtered waveforms.You can also use math channels to reveal new details in complex signals. An example would be to graph the changing duty cycle or frequency of your signal over time.

High-end oscilloscope

At the heart of every PicoScope 2000 is an advanced oscilloscope which offers everything you would expect and much more besides:

• 10,000 waveform circular buffer
• Up to 80,000 waveforms per second update rate
• Mask limit testing
• Advanced math & filtering
• Measurements with statistics
• Advanced digital triggering
• Resolution enhancement to 12 bits

Arbitrary waveform generator (AWG) and function generator

All PicoScope 2000 Series oscilloscopes have a built-in function generator and arbitrary waveform generator (AWG) which output signals on a front panel BNC.

The function generator can produce sine, square, triangle and DC level waveforms, and many more besides, while the AWG allows you to import custom waveforms from data files or create and modify them using the built-in graphical AWG editor.

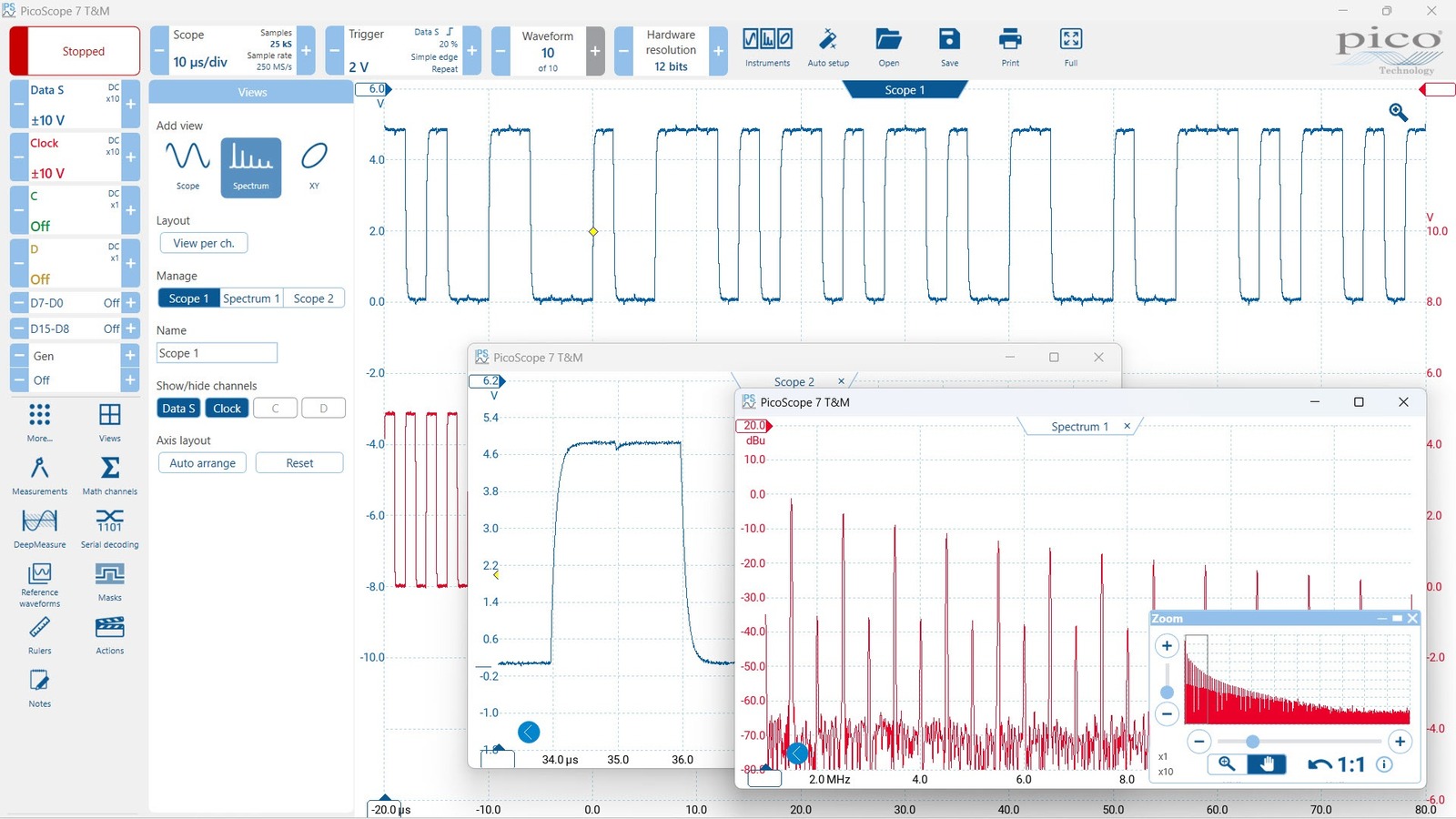

As well as level, offset and frequency controls, advanced options allow you to sweep over a range of frequencies. Combined with the advanced spectrum mode, with options including peak hold, averaging and linear/log axes, this creates a powerful tool for testing amplifier and filter responses.

PicoScope 2000B models have trigger options that allow one or more cycles of a waveform to be output when various conditions are met, such as the scope triggering or a mask limit test failing.
